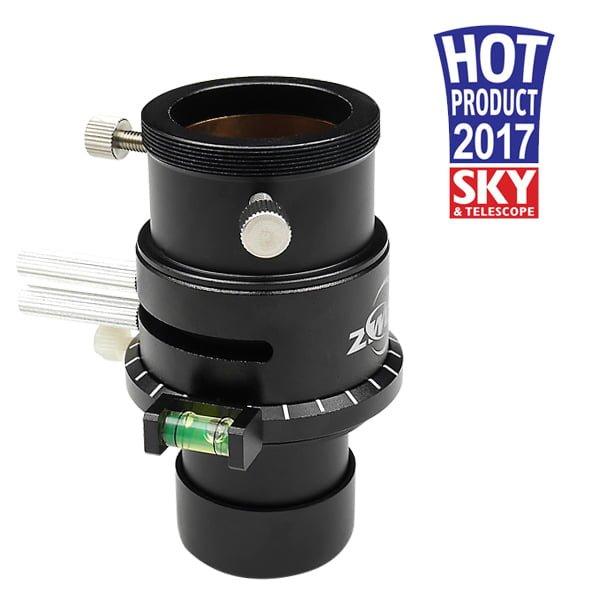

ZWO Atmospheric Dispersion Corrector

ZWO Atmospheric Dispersion Corrector (ADC) is used to reduce the effect of atmospheric dispersion on lunar and planetary images. It can be used for imaging and for observation.

Why you would use a ZWO Atmospheric Dispersion Corrector ?

Light from any star or planet that enters our atmosphere at an angle will suffer refraction effects. It bend to light to a slightly steeper angle. This refraction effect makes the object appear higher in the sky than if the atmosphere wasn’t there. The degree of refraction depends to a small degree on various things. Like temperature, humidity, observers and height above sea level. It does increases strongly with decreasing altitude of the object. For example, the image of the sun at sunset can actually be elevated by over 0.5°, which is slightly more than one solar diameter.

Like most optical media the refractive (bending) power of the atmosphere is actually dependent on the wavelength of light. This is called optical dispersion. Atmospheric dispersion corrector means that actually the degree of ‘lift’ that the refraction causes depends not only on the angle of the light, but also the colour of that light. Atmospheric dispersion spreads the light from any point source into a vertical spectrum of colours whose length increases the lower the object is in the sky.

The schematic below illustrates this dispersion effect as light enters the atmosphere and also the lifted elevation of the image. The lift is wavelength dependent and hence the image is separated into different colours. A planet exhibiting bad atmospheric dispersion effects will have a blue fringe on the top edge and a red fringe on the bottom edge.

You can read in much more detail in this excellent article by Martin Lewis: http://skyinspector.co.uk/atm-dispersion-corrector–adc

Technical Specifications

In the Box

• ADC

Manuals & Warranty

ZWO 2-Years Warranty

ZWO General Product & Software Manuals

ZWO ADC Quick Guide

ZWO ADC Manual

ZWO How to Clean the Prism of the ADC

ZWO Atmospheric Dispersion Corrector (ADC) Transmission curve

ZWO Atmospheric Dispersion Corrector (ADC) Mechanical Drawing
